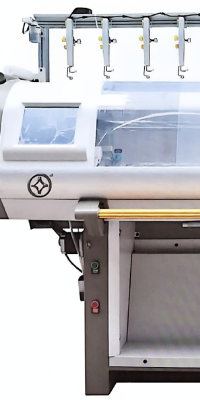

The TSRF-3 is a high-performance computerized flat knitting machine designed for precision, speed, and industrial-level stability. It is suitable for both regular and complex knitting patterns.

3️⃣ Needle Gauge Options

Supported gauges include 7G, 12G, and 14G, making the machine adaptable to different fabric thickness requirements.

2️⃣ Knitting System Configuration

The machine adopts a single-head dual-system structure, enabling efficient knitting with improved productivity and accuracy.

4️⃣ Maximum Knitting Width

The knitting width reaches up to 52 inches, ideal for wide and large-size garment production.

5️⃣ High-Speed Servo Control

Powered by AC servo motors, the machine achieves speeds up to 1.2 m/s, ensuring smooth and stable operation.

6️⃣ Advanced Knitting Functions

Supports knit, tuck, miss, transfer, intarsia, jacquard, shaping, and irregular pattern knitting.

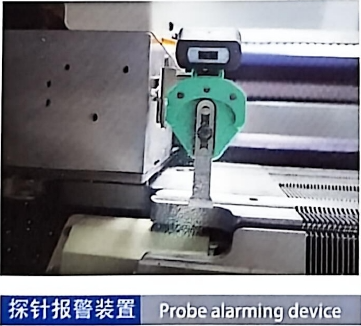

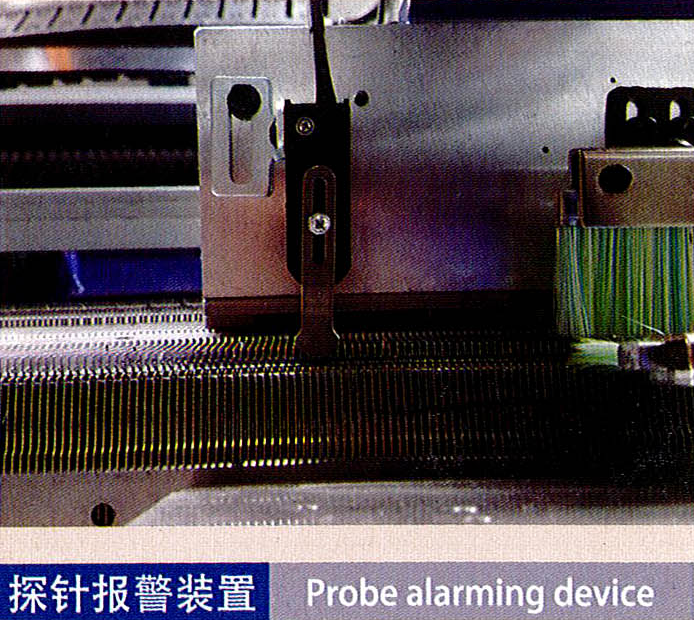

8️⃣ Infrared Probe Alarm System

Infrared sensors detect yarn breakage, needle errors, and fabric faults, triggering automatic alarms.

9️⃣ Intelligent Stitch Density Control

24-section stitch density adjustment allows precise control from 0–650, ensuring fabric uniformity.

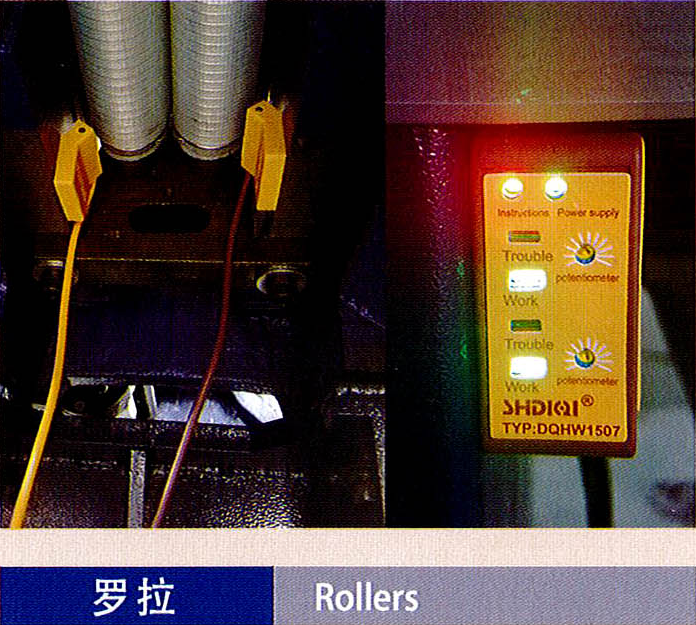

🔟 Yarn Take-Down Roller System

Stepper motor-controlled rollers offer 24-level tension control with adjustable range 0–100.

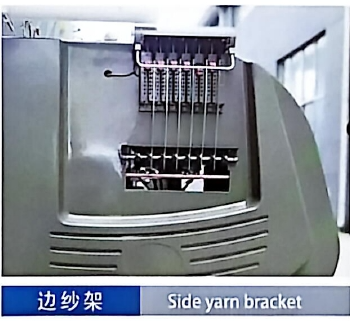

1️⃣1️⃣ Yarn Carrier Configuration

Equipped with 1×8 yarn carriers on both sides, adjustable according to fabric requirements.

1️⃣2️⃣ Automatic Protection System

The machine automatically stops during yarn breakage, needle damage, power failure, or system errors.

1️⃣3️⃣ Touch Screen Control Interface

Industrial LCD touch screen displays real-time parameters and supports USB and network data transfer.

1️⃣4️⃣ Multi-Language Operating System

Supports Chinese, English, and other languages, customizable according to customer needs.

1️⃣5️⃣ Power & Manufacturing Standard

Runs on single-phase 220V power and is manufactured under ISO 9001:2008 quality standards by Sen Yang Group.
