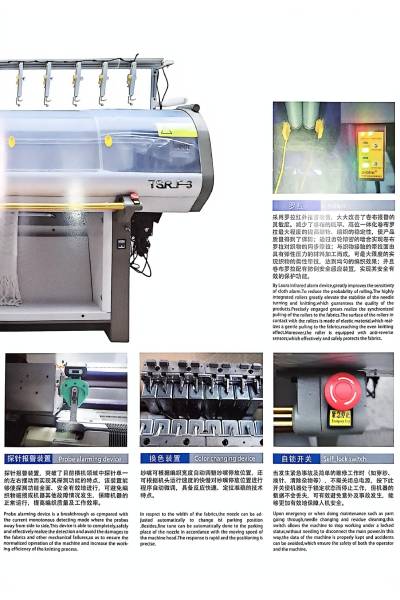

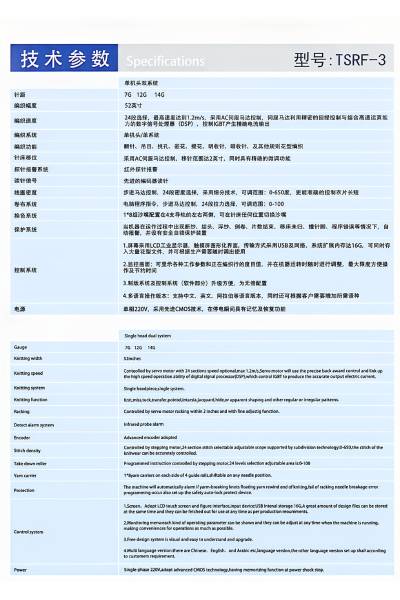

The TSRF-3 is a high-performance computerized flat knitting machine designed for precision, speed, and industrial-level stability. It is suitable for both regular and complex knitting patterns.

3️⃣NeedleGaugeOptions

Supported gauges include 7G, 12G, and 14G, making the machine adaptable to different fabric thickness requirements.

2️⃣KnittingSystemConfiguration

The machine adopts a single-head dual-system structure, enabling efficient knitting with improved productivity and accuracy.

4️⃣Maximum KnittingWidth

The knitting width reaches up to 52 inches, ideal for wide and large-size garment production.

5️⃣High-Speed ServoControl

Powered by AC servo motors, the machine achieves speeds up to 1.2 m/s, ensuring smooth and stable operation.

6️⃣AdvanceKnittingFunctions

Supports knit, tuck, miss, transfer, intarsia, jacquard, shaping, and irregular pattern knitting.

8️⃣InfraredProbeAlarmSystem

Infrared sensors detect yarn breakage, needle errors, and fabric faults, triggering automatic alarms.

9️⃣IntelligentStitchDensityControl

24-section stitch density adjustment allows precise control from 0–650, ensuring fabric uniformity.

🔟Yarn TakeDownRollerSystem

Stepper motor-controlled rollers offer 24-level tension control with adjustable range 0–100.

1️⃣1️⃣YarnCarrierConfiguration

Equipped with 1×8 yarn carriers on both sides, adjustable according to fabric requirements.

1️⃣2️⃣Automatic ProtectionSystem

The machine automatically stops during yarn breakage, needle damage, power failure, or system errors.

1️⃣3️⃣TouchScreenControlInterface

Industrial LCD touch screen displays real-time parameters and supports USB and network data transfer.

1️⃣4️⃣MultiLanguageOperatingSystem

Supports Chinese, English, and other languages, customizable according to customer needs.

1️⃣5️⃣PowerManufacturing Standard

Runs on single-phase 220V power and is manufactured under ISO 9001:2008 quality standards by Sen Yang Group.
